Electric Door Strike | 12VDC

Electric Door Strike | 12VDC

Fail-Secure/Fail-Safe | MODEL: 300

Convert Cylindrical Mechanical Locks Into Electronic Access Controlled Locking Systems.

$77.96
$132.00 $77.96
Sale Sold out

Documentation:

Information Sheet Manual Flyer
DOWNLOAD DOWNLOAD DOWNLOAD

Shipping & Returns

FREE SHIPPING + TRACKING within the United States via UPS® Ground (1-5 Business Days)

30-Day Zero Question Returns

International Shipping Not Yet Available

3-Year Limited Warranty:

Should your strike stop operating under normal use within three years of purchase, we’ll repair or replace it — hassle free.

This warranty covers defects in materials or workmanship during normal installation and operation.
View Full Warranty Policy →

View full details

ANSI Standard Electric Door Strike | 12v Fail-Secure / Fail-Safe

12V electric door strike for access control. Durable for Commercial or Residential Applications.

Our 12V DC electric door strike is engineered for installers who want reliability & performance. With 2,200 lb jaw strength, field-selectable fail-secure or fail-safe modes, and compatibility with standard cylindrical locksets, this strike delivers security for both commercial and residential doors.

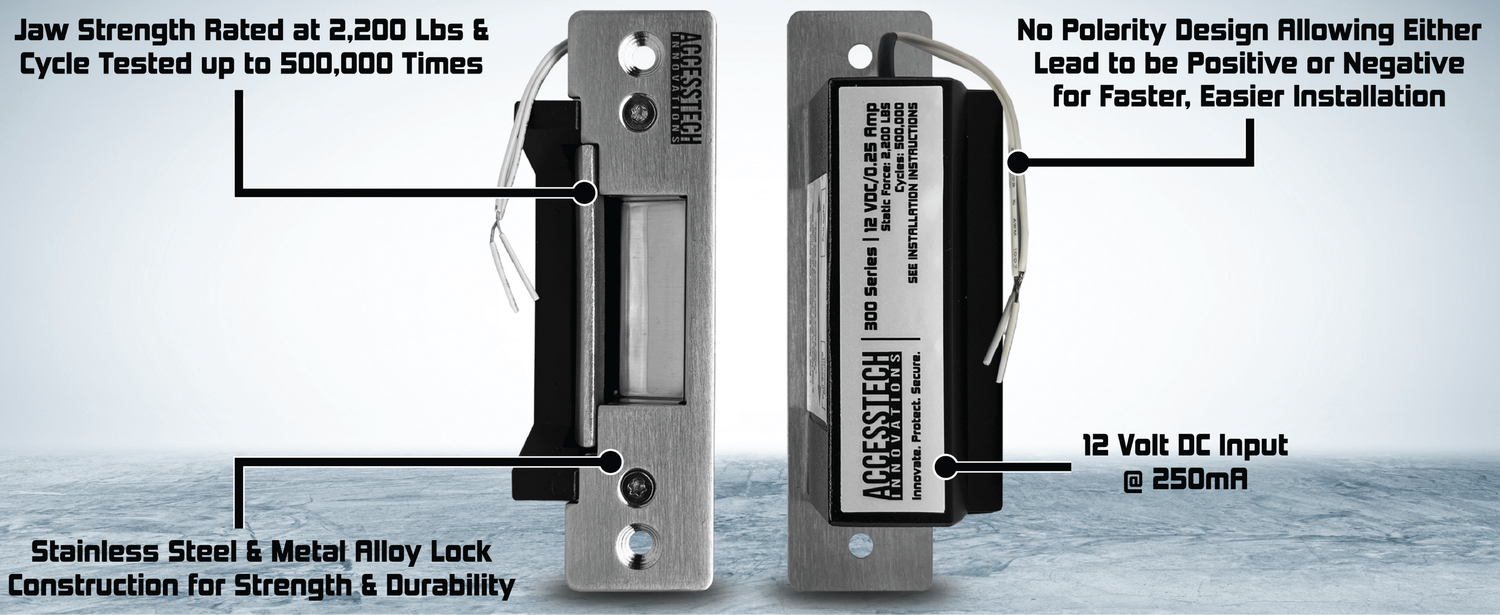

2,200 lb Jaw strength and Cycle Tested up to 500,000 times for security and reliability

Utilizing two non-polarized wires, it's designed to function with either lead wired as positive or negative - speeding up installation and reducing mistakes to integrate with card readers, keypads and intercom systems. Constructed from all-metal components and tested to operate for 500,000 cycles.

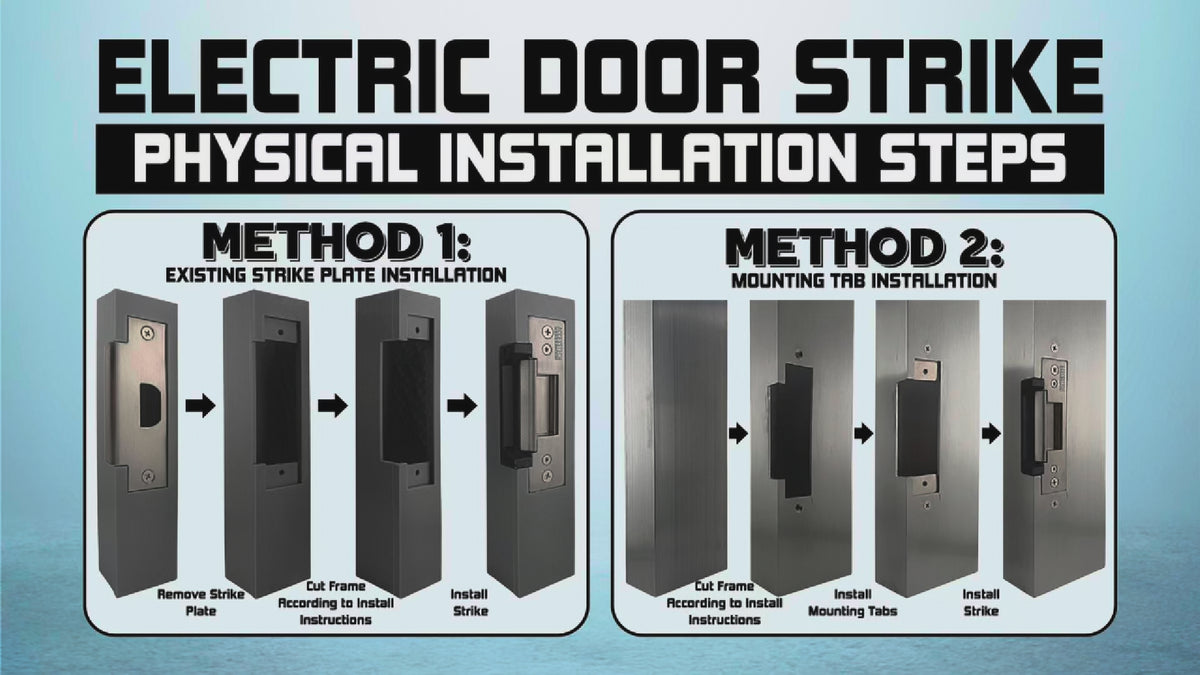

Install in 3 Easy Steps

Includes All Necessary Mounting Hardware

Method 1: Upgrade an Existing Strike Plate

Easily upgrade from existing ANSI standard door frames. Simply remove the old strike plate, cut the door frame according to the installation instructions, and secure the strike using the included screws.

Method 2: Install into a New Frame or Post

Door frames without existing tabs or for new construction, cut the required opening following the installation guide. Install the included mounting tabs, then install the electric strike for a professional fit.

Video thumbnail

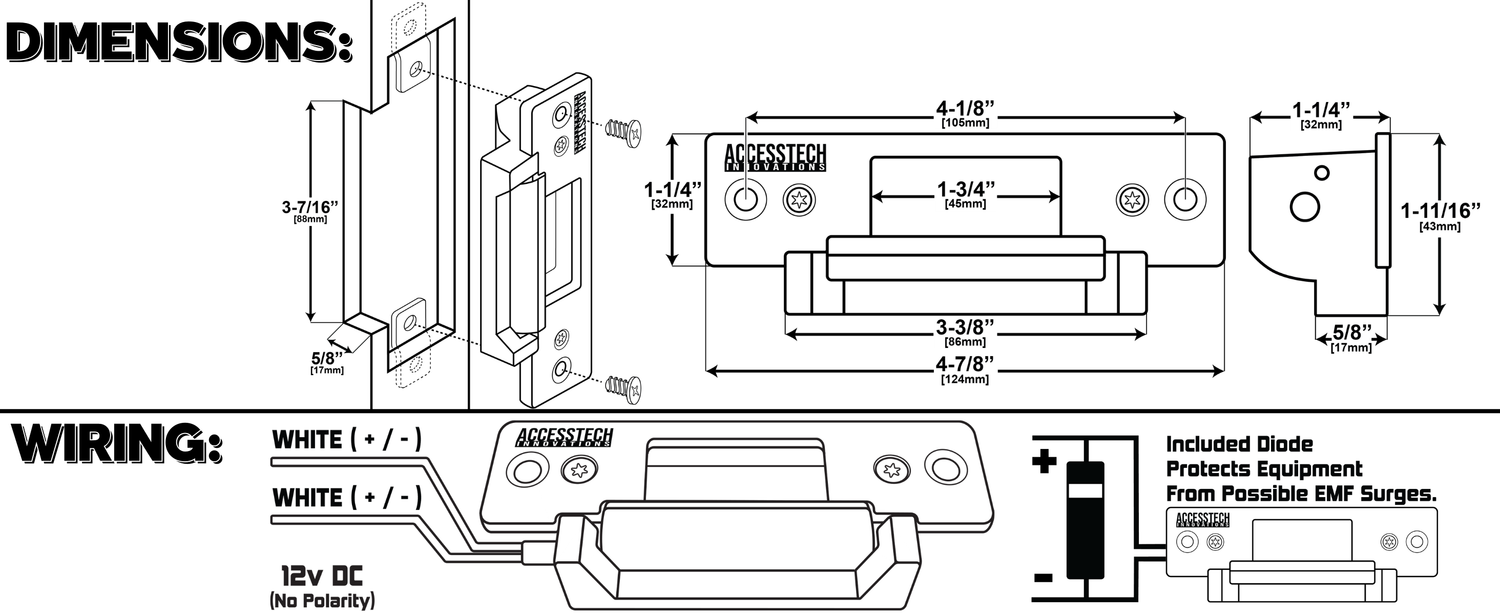

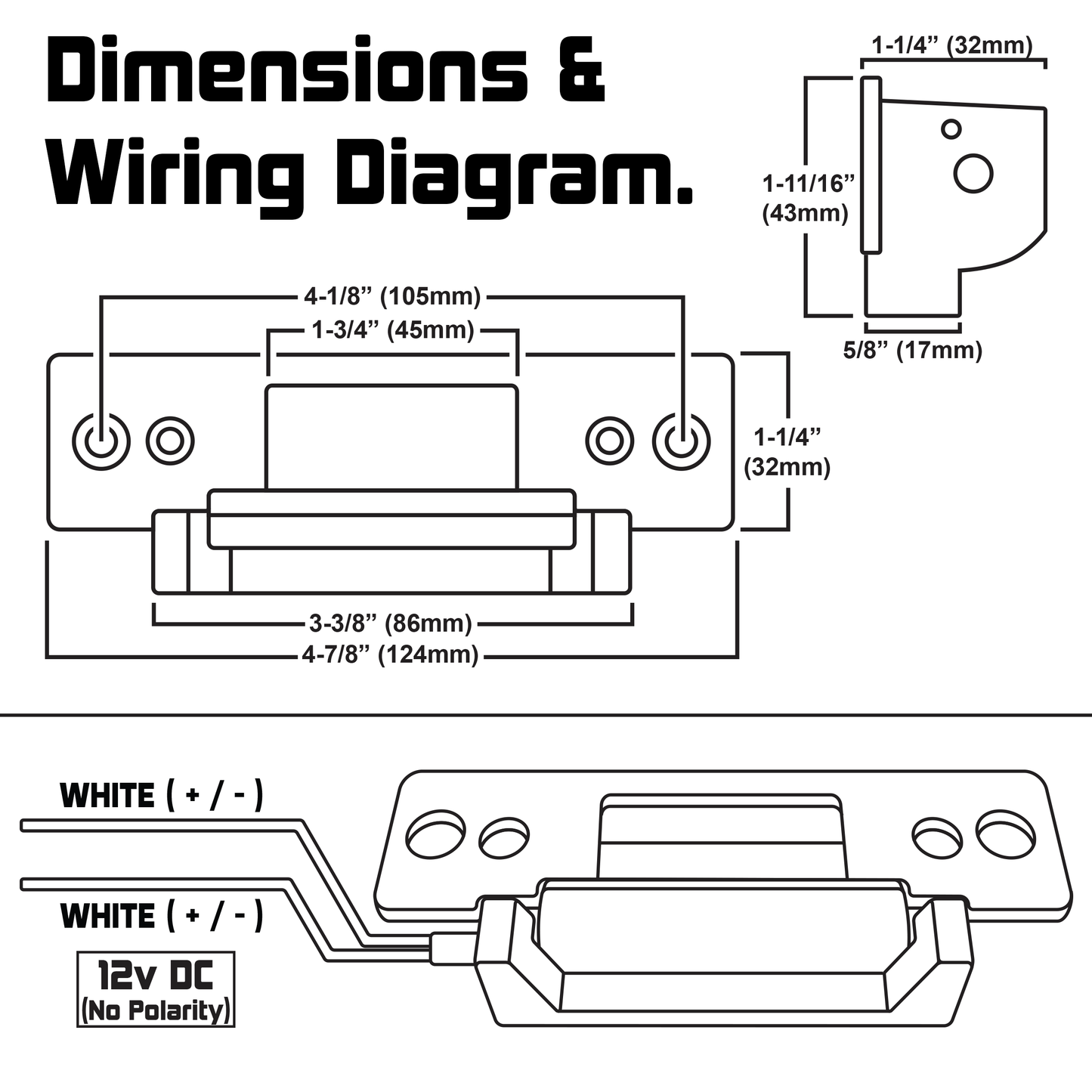

Electric door strike dimensions wiring diagram and door frame cutout with diode for emf protection

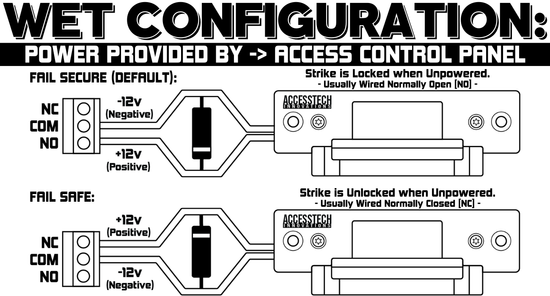

  • Electric door strike Dry wiring diagram power by access control panel. fail safe fail, secure modes

    In a wet configuration, the strike power comes directly from the access control panel. The default method is Fail Secure, meaning the strike only unlocks when power is applied.

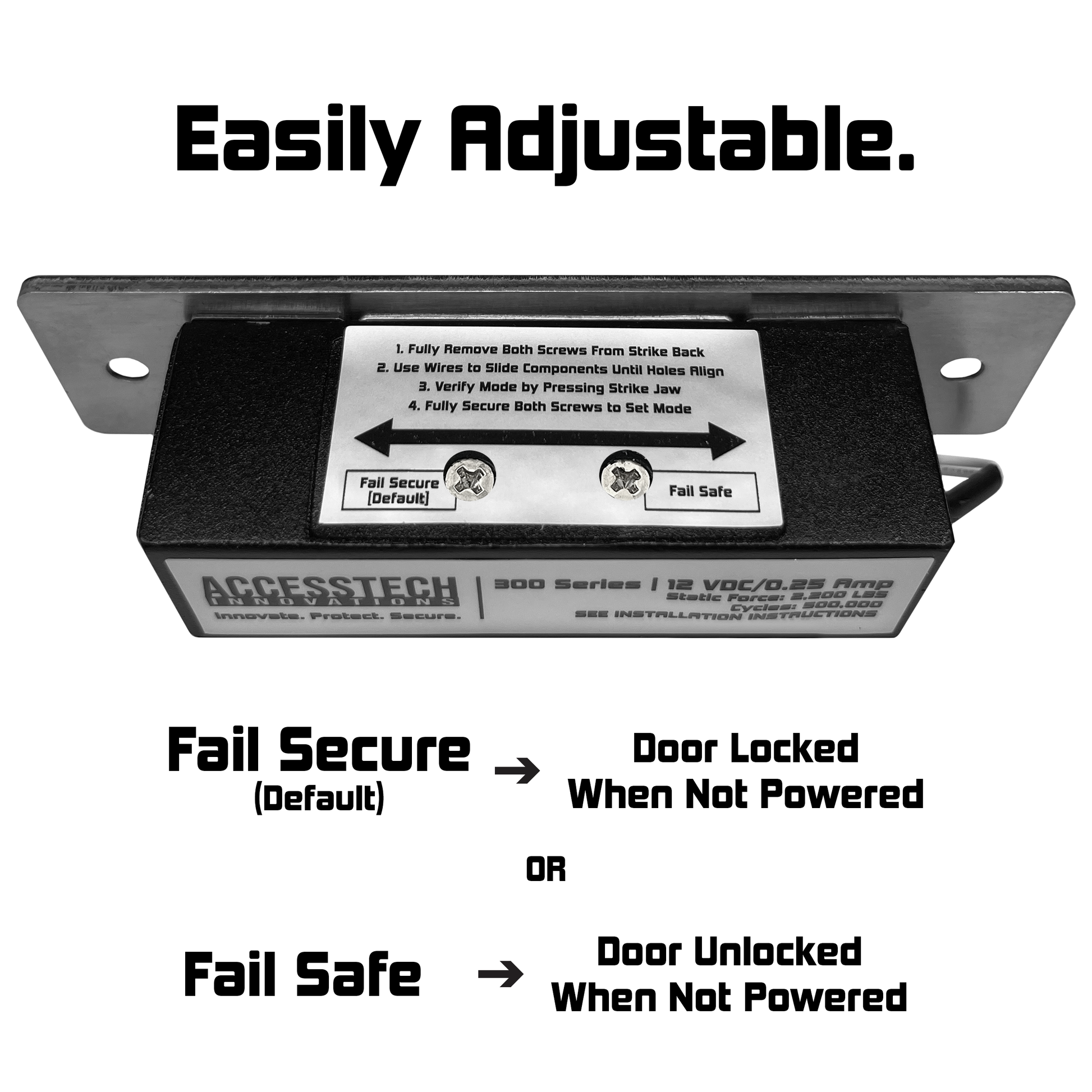

    Alternatively, the strike can be adjusted using the screws on the back to be fail safe, so it unlocks when power is lost.

  • Electric door strike Dry wiring diagram power by external power supply fail safe fail, secure modes

    In a dry configuration, the power comes from an external power supply with your access control panel controlling when the power is sent to the strike using a relay.

    This is done by adding a jumper wire from the power supply's Positive (+12v) terminal, to the panel's Common (COM) terminal connection.

1 2

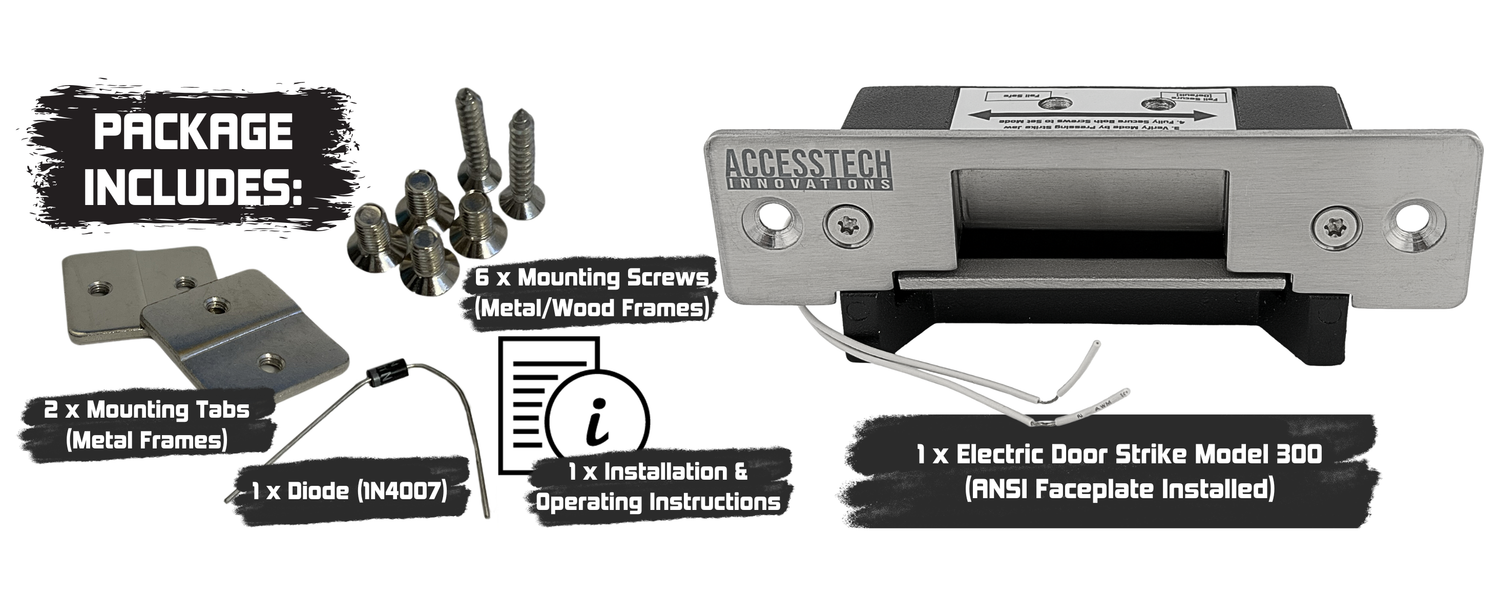

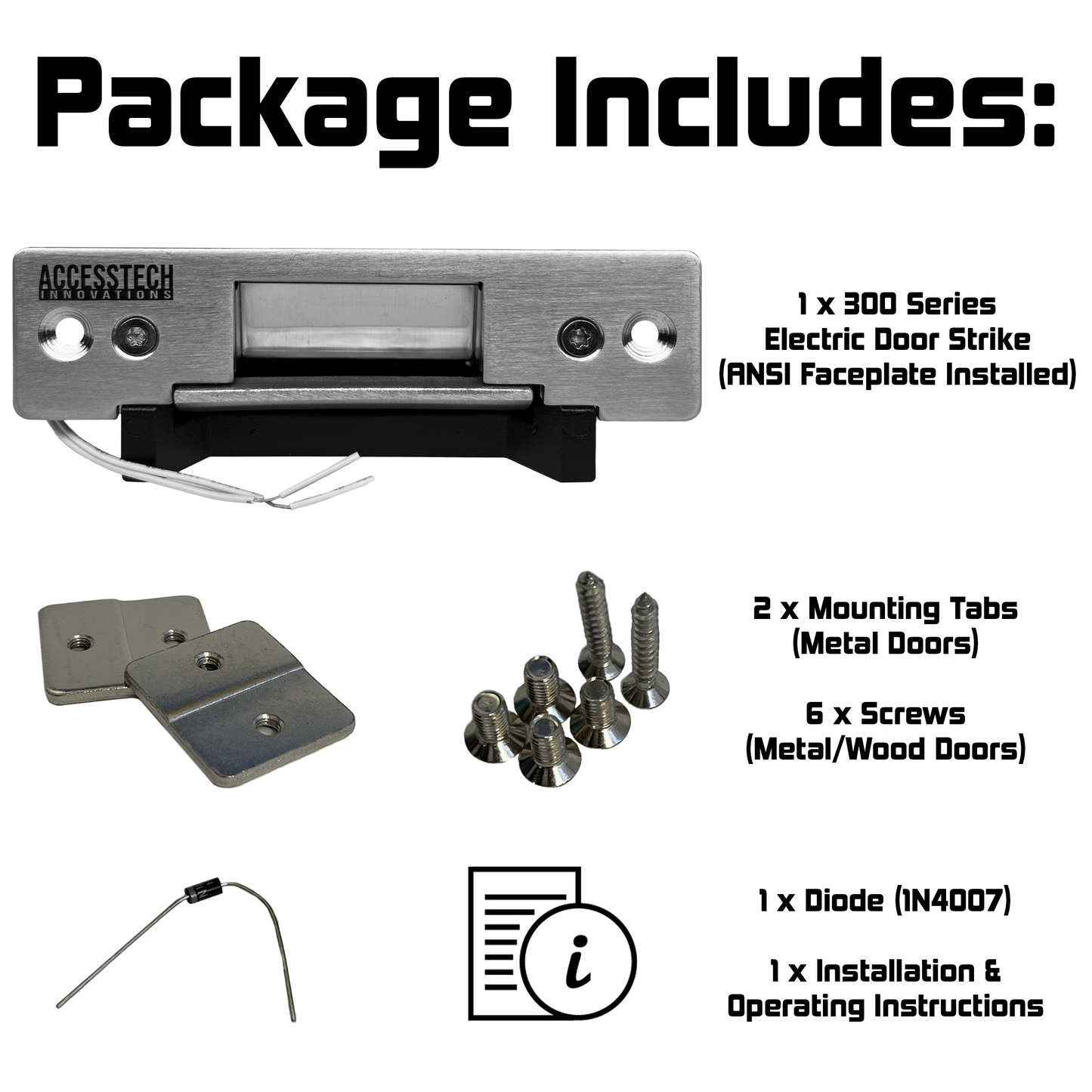

Package includes electric strike body ANSI faceplate, screws, mounting tabs, diode and instructions

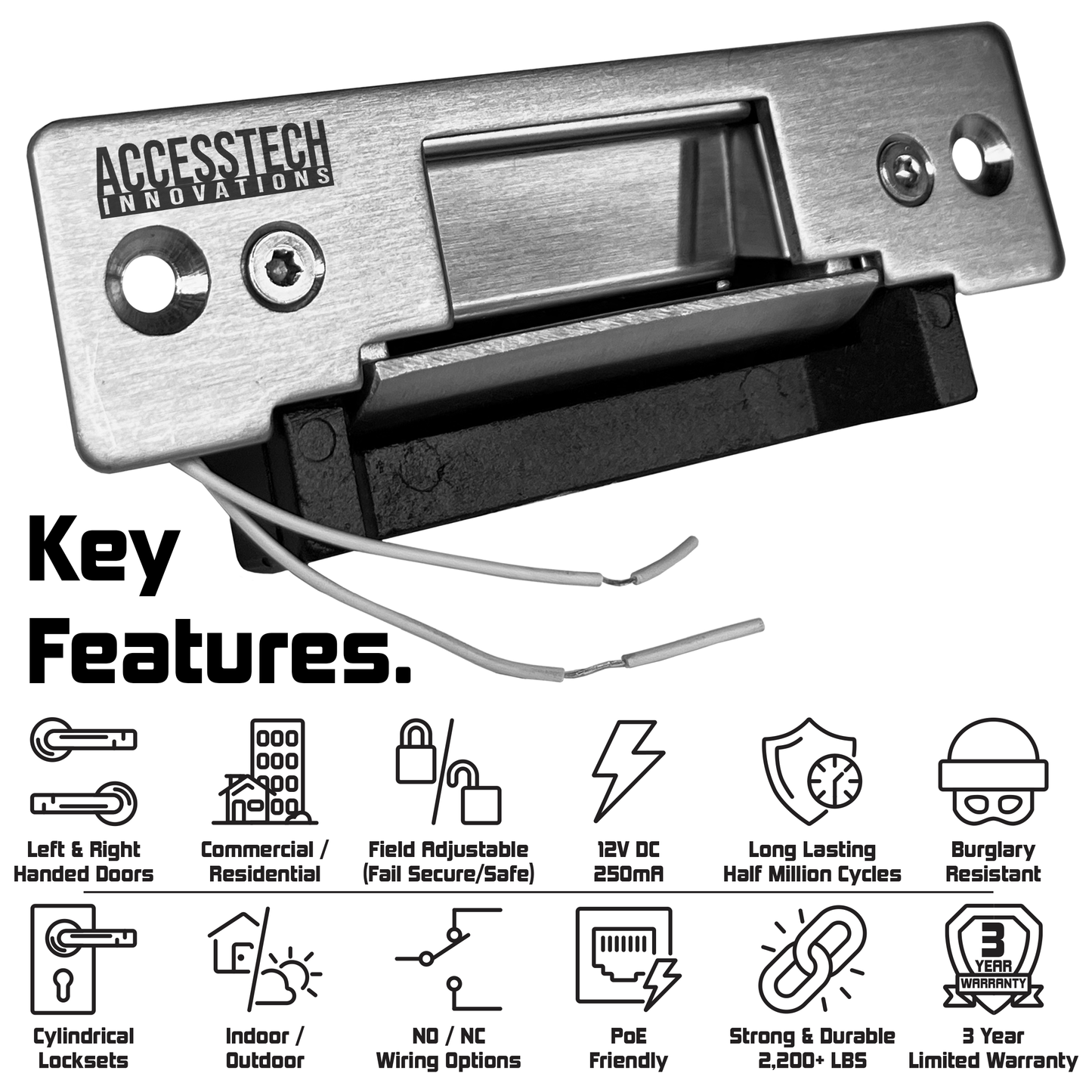

Key Features:

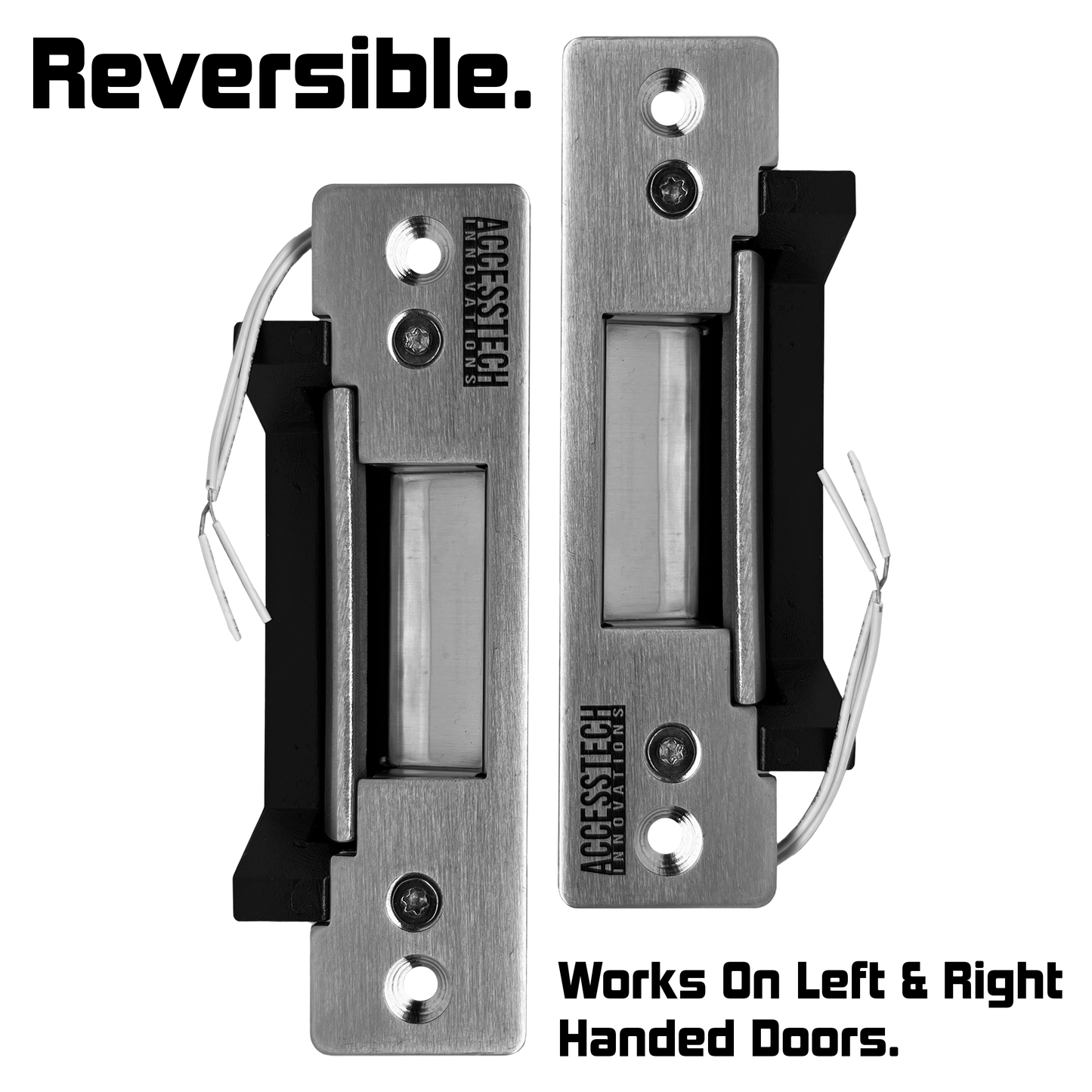

  • Left & Right Handed Doors
  • Commercial / Residential Use
  • Field Adjustable (Fail Secure/Safe)
  • 250mA @ 12V DC
  • Long Lasting Half Million Cycles
  • Burglary Resistant
  • Cylindrical Locksets
  • Indoor / Outdoor
  • NO / NC Wiring Options
  • PoE Friendly
  • Strong & Durable 2,200+ LBS
  • 3 Year Limited Warranty
1 12

Technical Specifications

Model: 300
Operating Power: 12VDC @ 250mA
Static Strength: 2,200-lbs
Dimensions: 4-7/8" x 1-11/16" x 1-1/4” (124x43x32 mm)
Materials: Stainless Steel / Metal Alloy
Operation: Fail-Secure (Default) / Fail-Safe
Wiring Options: Normally Open (NO) / Normally Closed (NC)
Operating Temperature: 14°F~131°F (-10°C~45°C)
Package Contents: 1x 300 Series Strike Body & ANSI Standard Faceplate | 1x Diode | 2x Mounting Tabs | 4x Tab/Metal Mounting Screws | 2x Wood Mounting Screws | 1x User Manual & Installation Guide

Shop The 300 Series Electric Strikes

Model 300: The Base Electric Strike

The foundation of the 300 Series, offering all the essential features needed for a secure and durable access control solution. Ideal for projects where reliable performance and straightforward installation are key priorities, the Model 300 delivers unmatched value.

Model 300-S: Enhanced with Signal Output

For those seeking additional functionality, the Model 300-S takes security to the next level. The "S" for Signal Output—incorporates a built-in door position switch. This switch can be wired to your Access Control system to provide real-time information on the door’s status (open or closed). By integrating this feature, the 300-S eliminates the need for a separate door contact, reducing both costs and installation time.

Whether you need a reliable base model or an advanced option with signal output capabilities, the 300 Series offers the perfect solution for any access control application.
