Electric Door Strike with Door Position Switch | 12VDC

Electric Door Strike with Door Position Switch | 12VDC

Signal Output / Door Position Switch | MODEL: 300-S

Convert Cylindrical Mechanical Locks Into Electronic Access-Controlled Locking Systems.

$92.00
$157.00 $92.00
Sale Sold out

3-Year Limited Warranty:

Should your strike stop operating under normal use within three years of purchase, we’ll repair or replace it — hassle free.

This warranty covers defects in materials or workmanship during normal installation and operation.
View Full Warranty Policy →

View full details

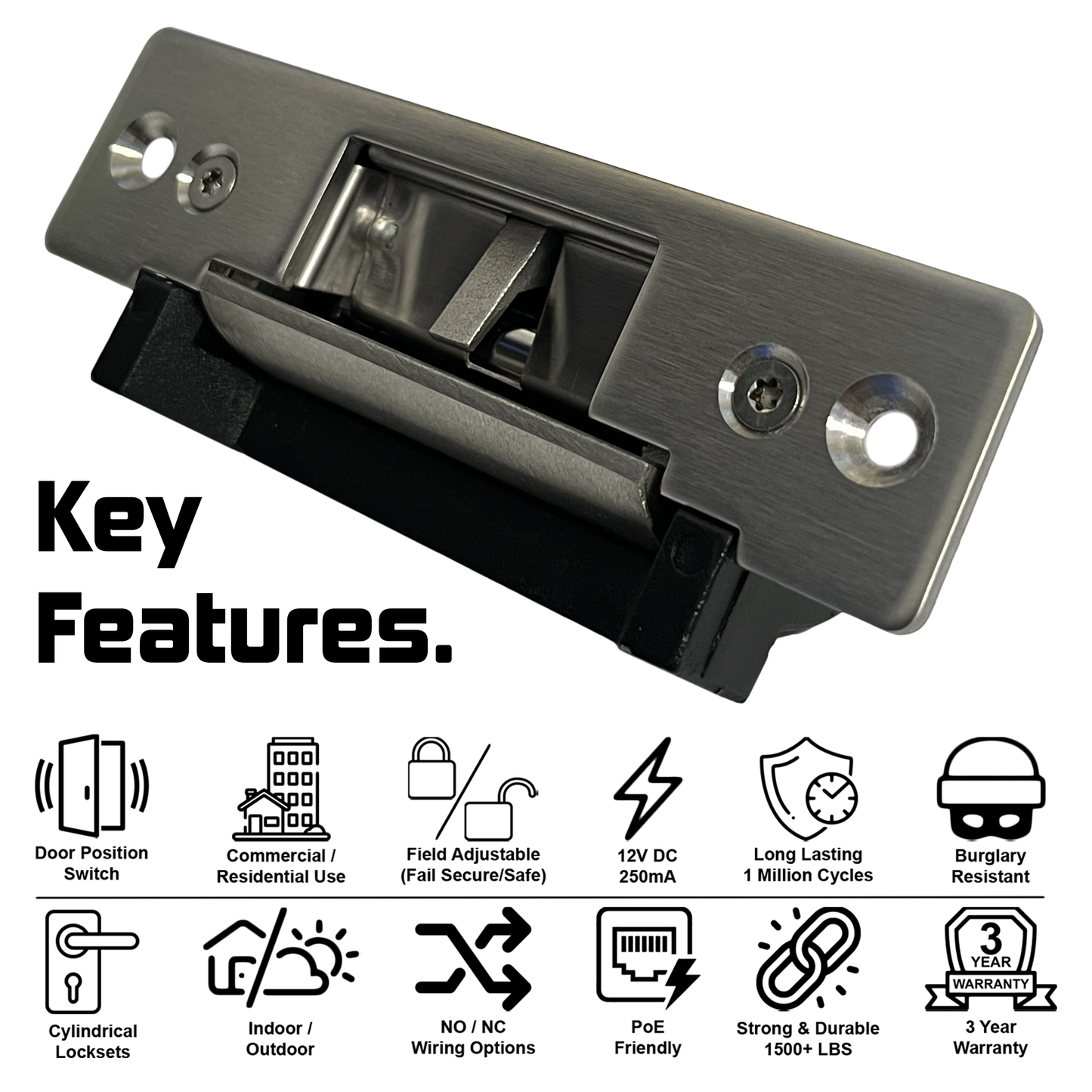

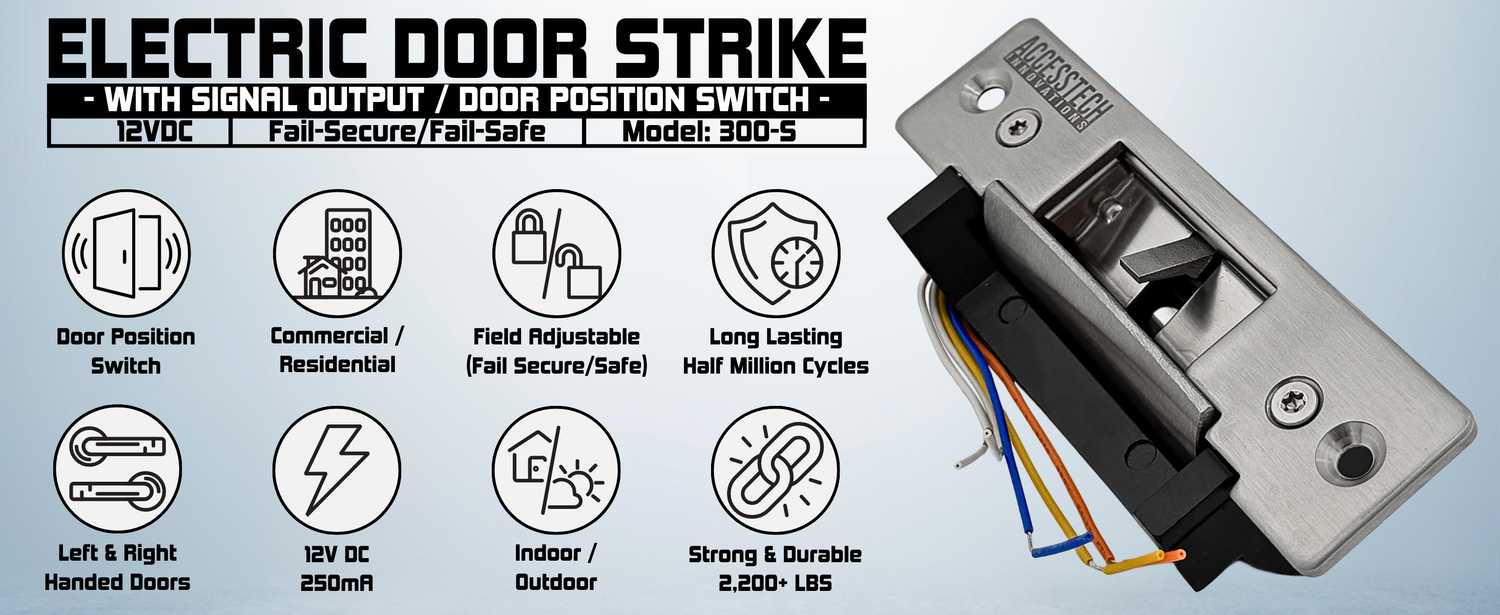

Key Features:

Door Position Switch / Commercial & Residential Use / Field Adjustable (Fail Secure/Fail Safe) / 12V DC @ 250mA / Long Lasting 1 Million Cycles / Burglary Resistant / Cylindrical Locksets / Indoor & Outdoor Use / NO or NC Wiring Options / PoE Friendly / Strong & Durable 1500+ LBS / 3 Year Warranty

Specifications:

Model 300-S

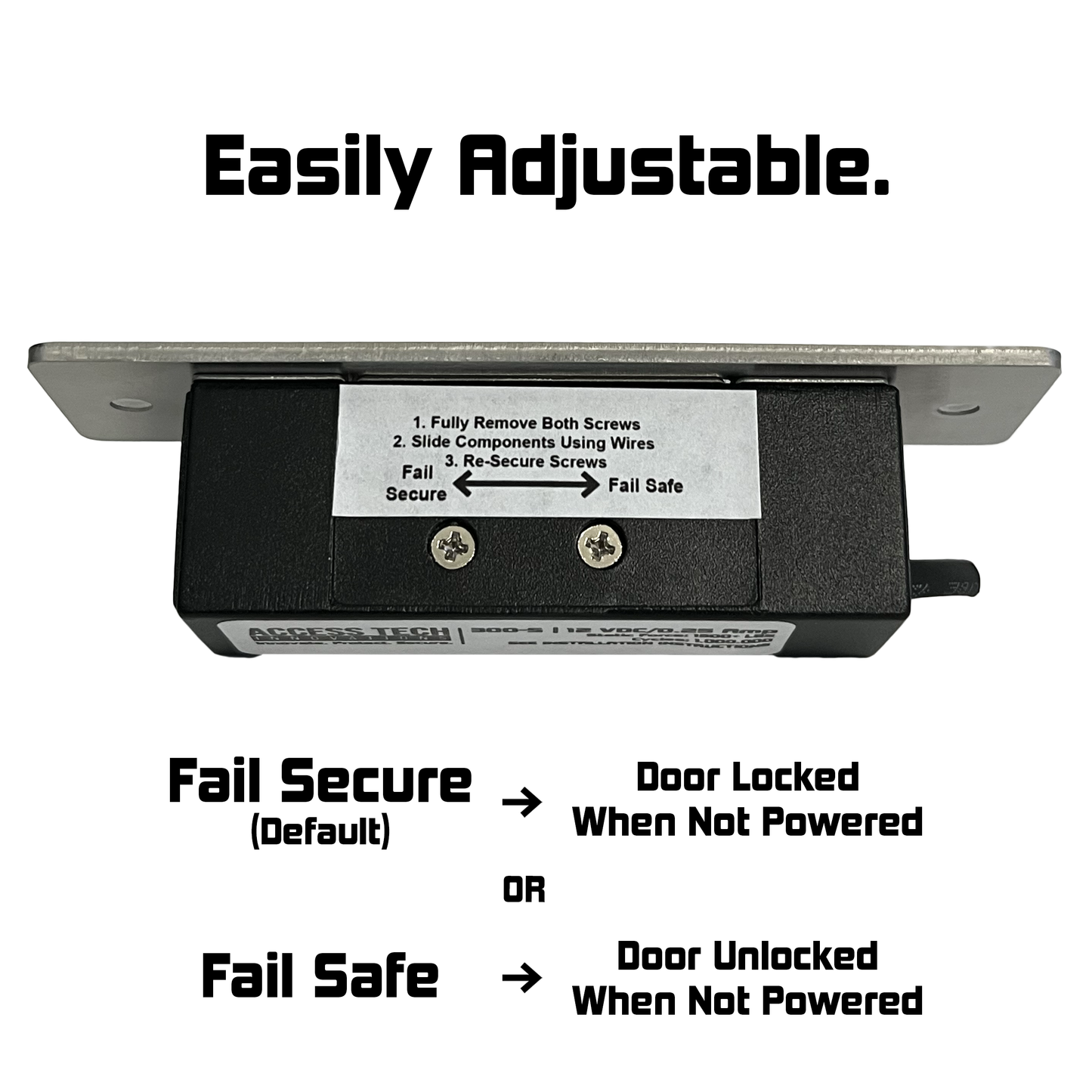

Operation Fail-Secure (Default) / Fail-Safe
Signal Output Normally Open (NO) / Normally Closed (NC)
Operating Power 12VDC @ 250mA
Latchbolt Size 5/8"
Static Strength 2,200+ Lbs
Cycles 500,000
Operating Temp 14°F~131°F (-10°C~45°C)
Dimensions 4-7/8" x 1-11/16" x 1-1/4” (124x43x32 mm)
Materials Stainless Steel / Metal Alloy

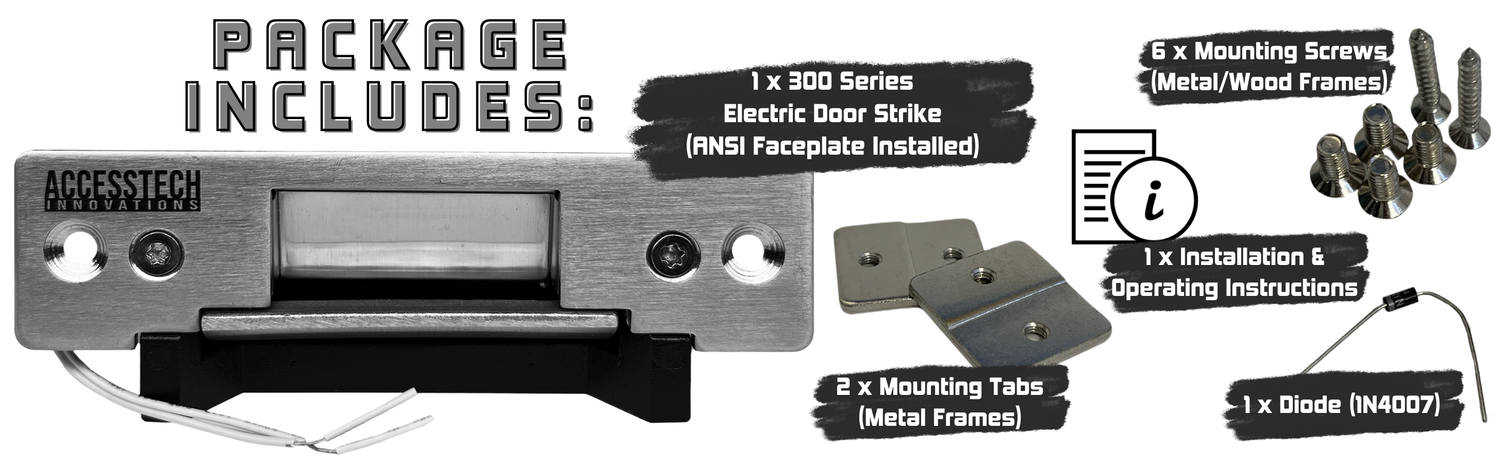

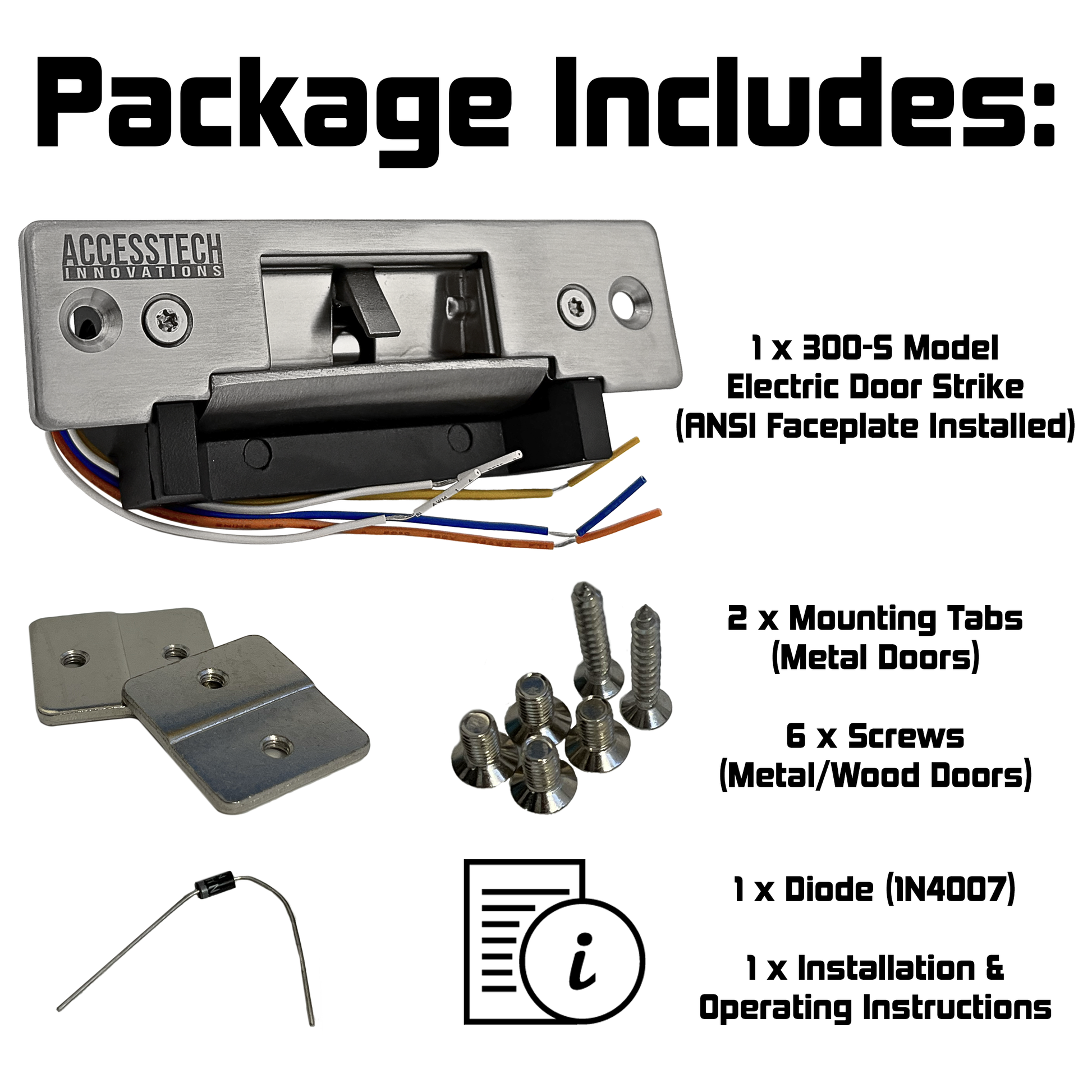

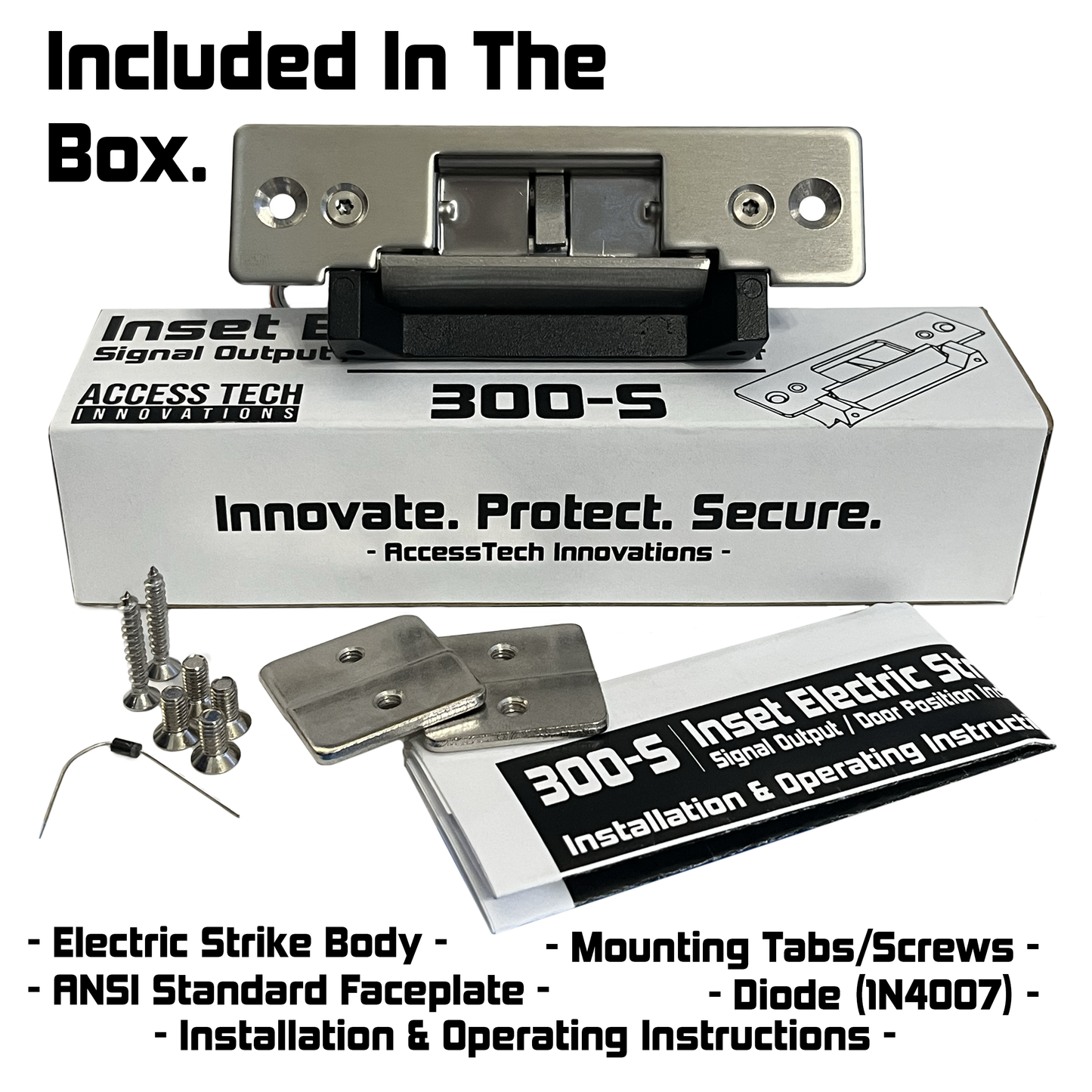

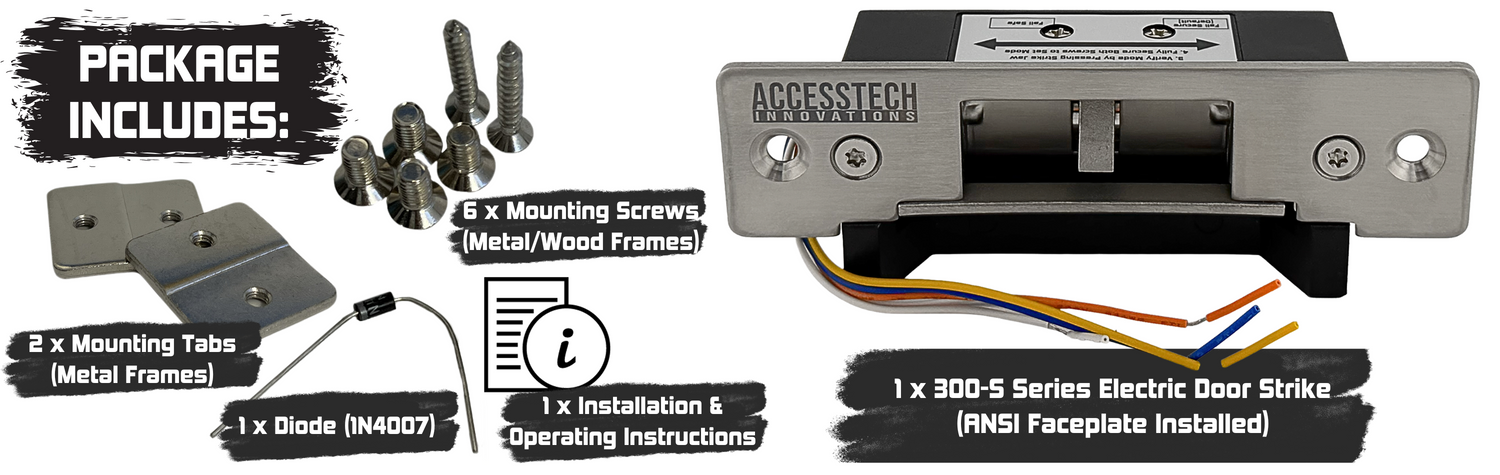

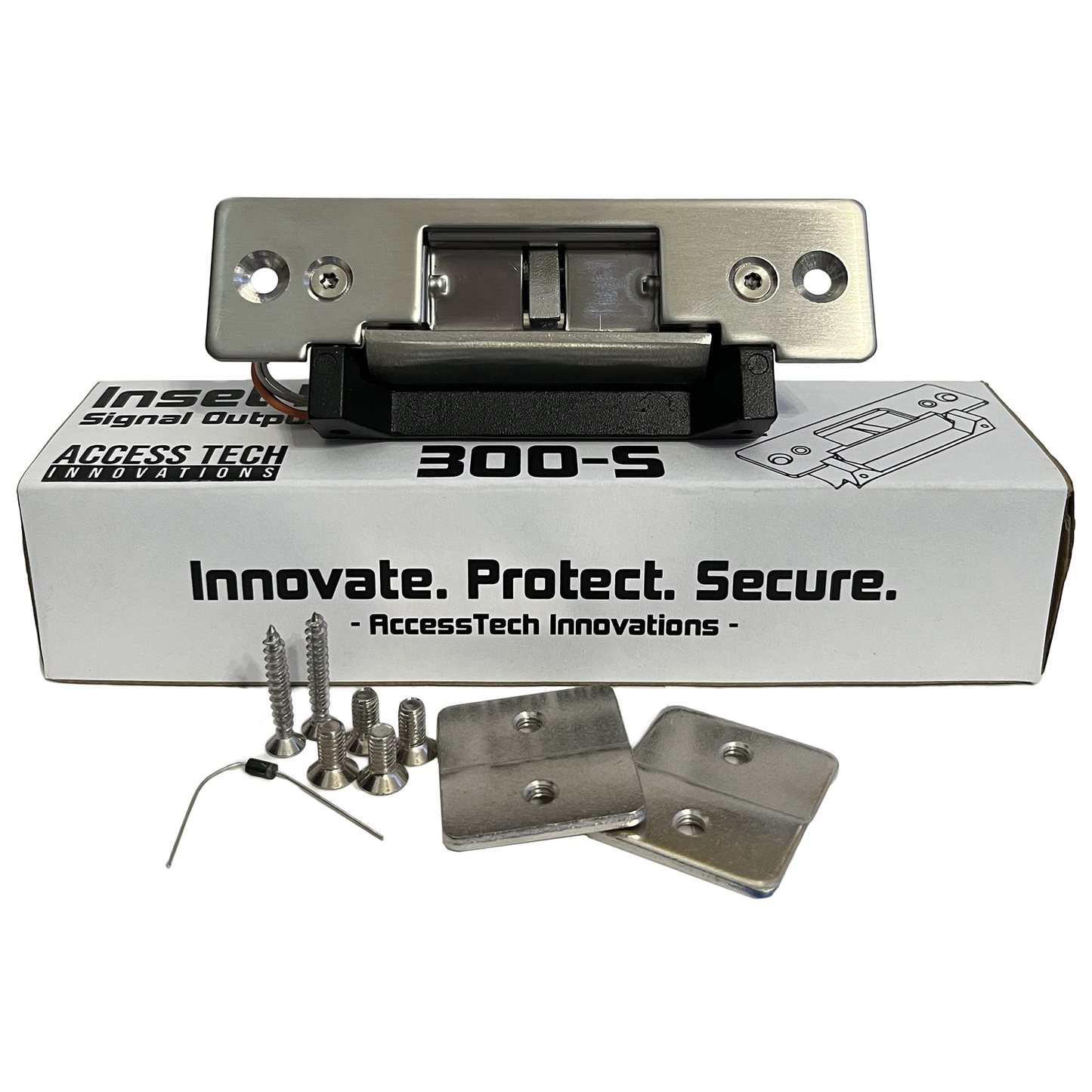

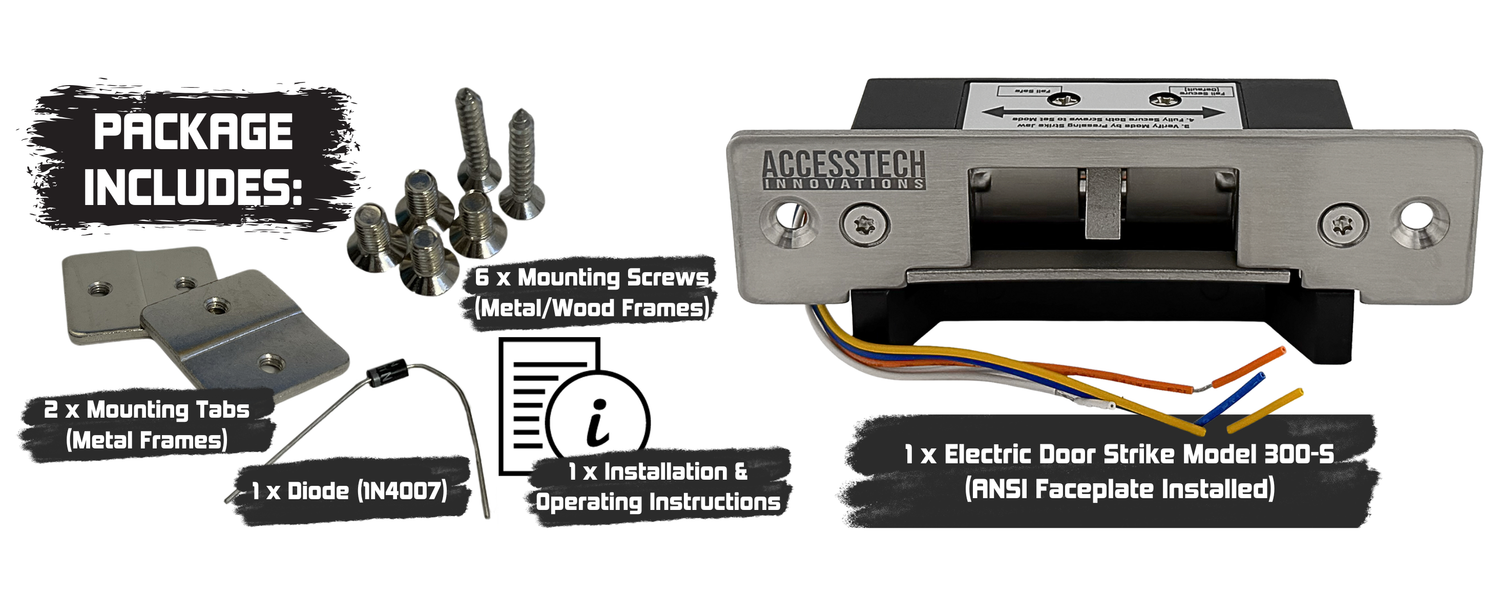

Package Contents 1 x 300-S Strike Body & ANSI Standard Faceplate
2 x Mounting Tabs
4 x Tab Mounting Screws
2 x Wood Mounting Screws
1 x User Manual

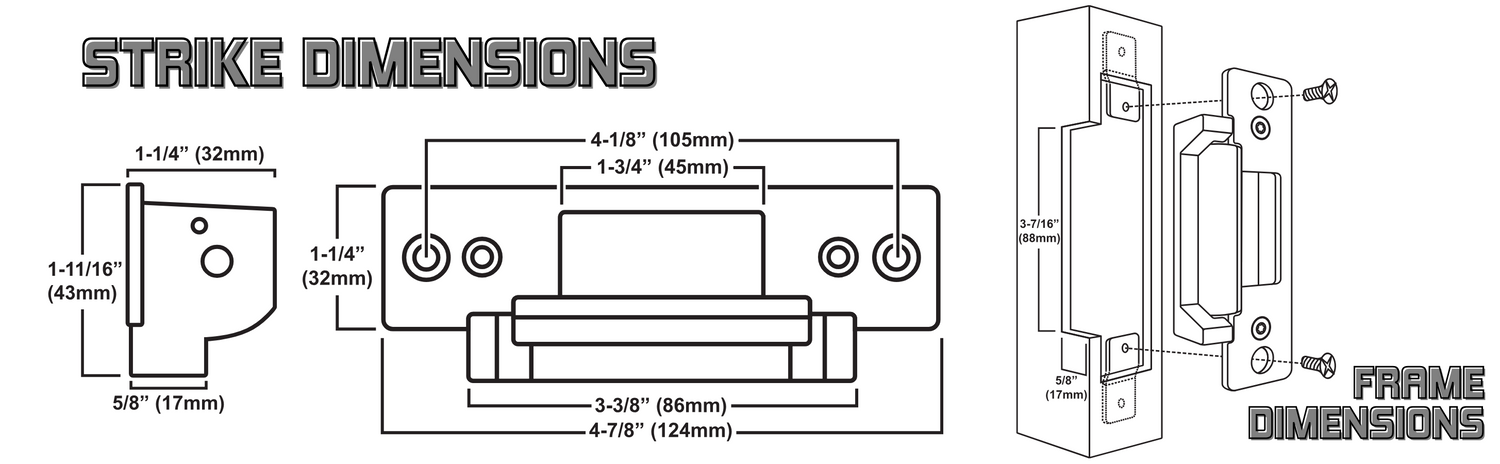

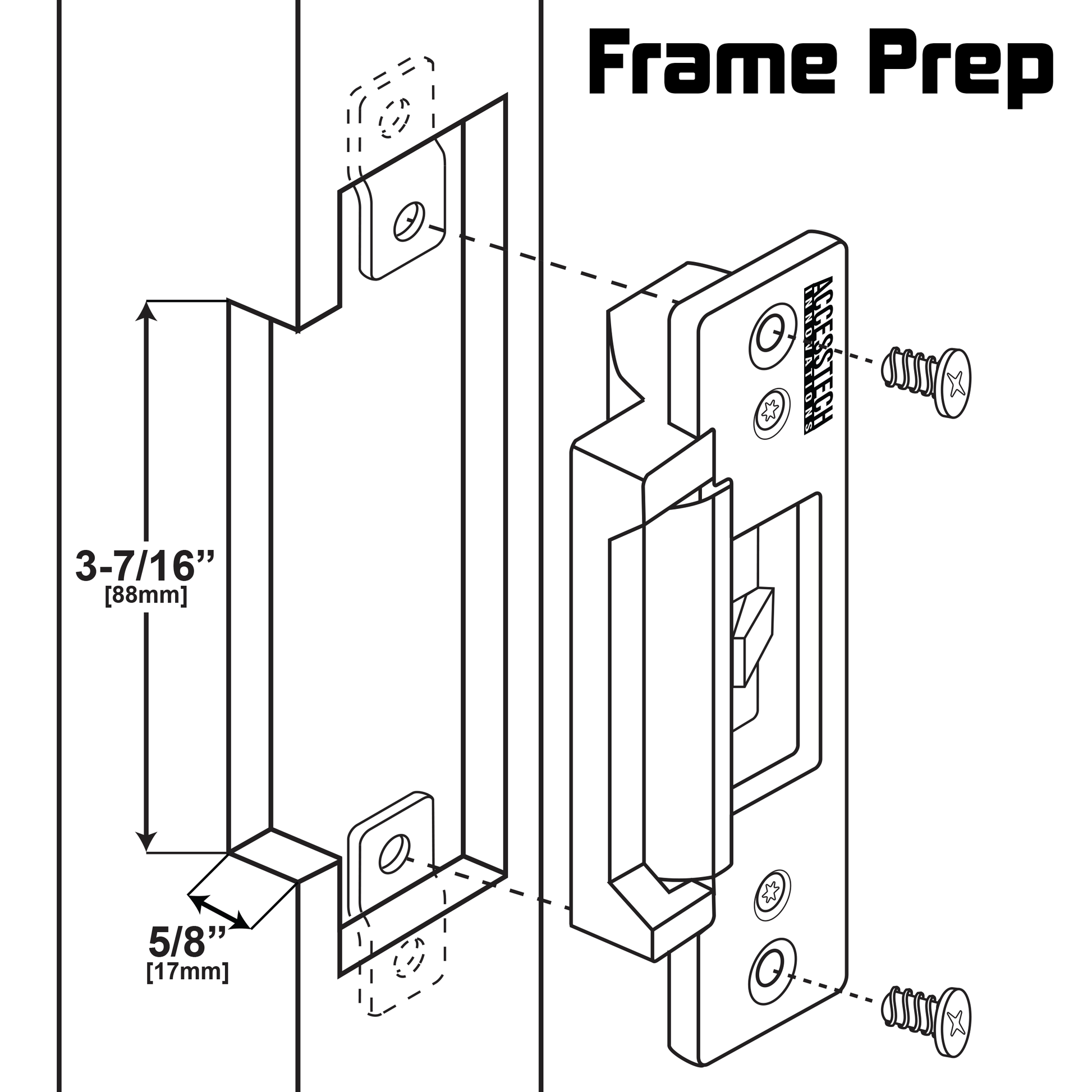

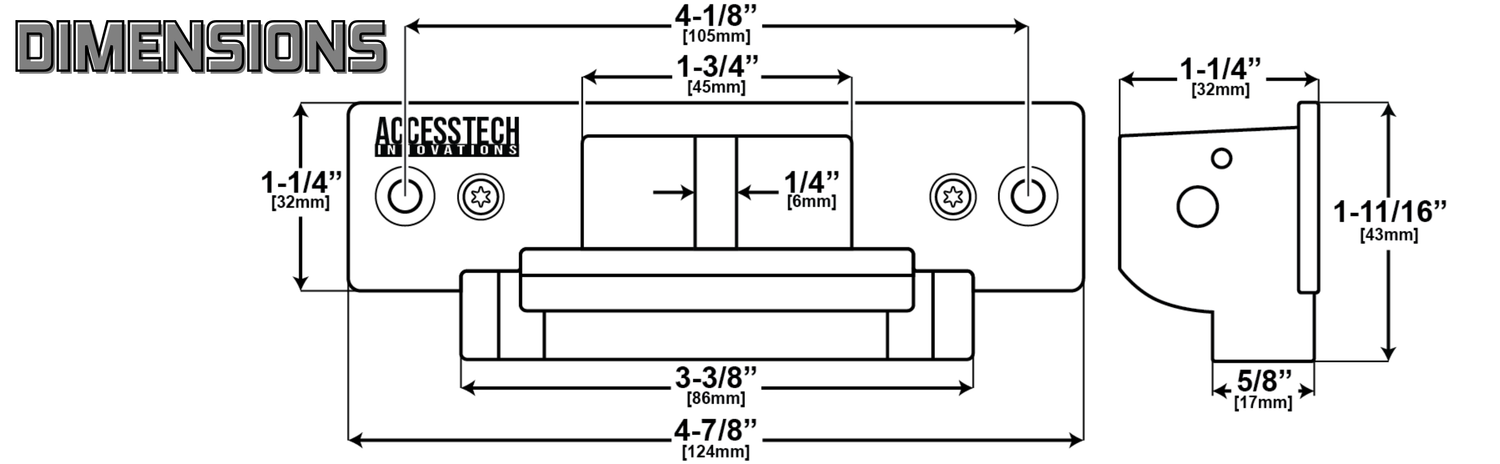

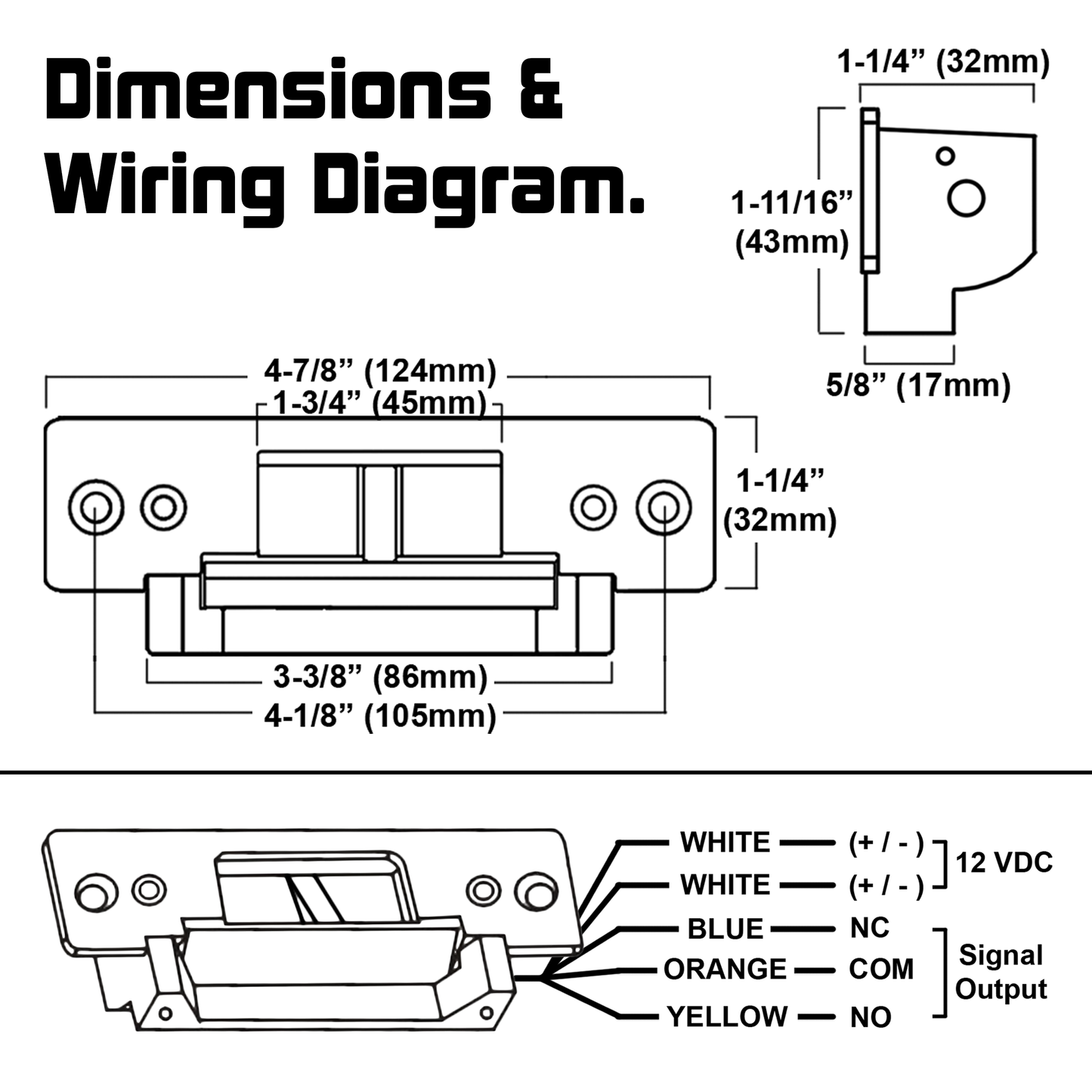

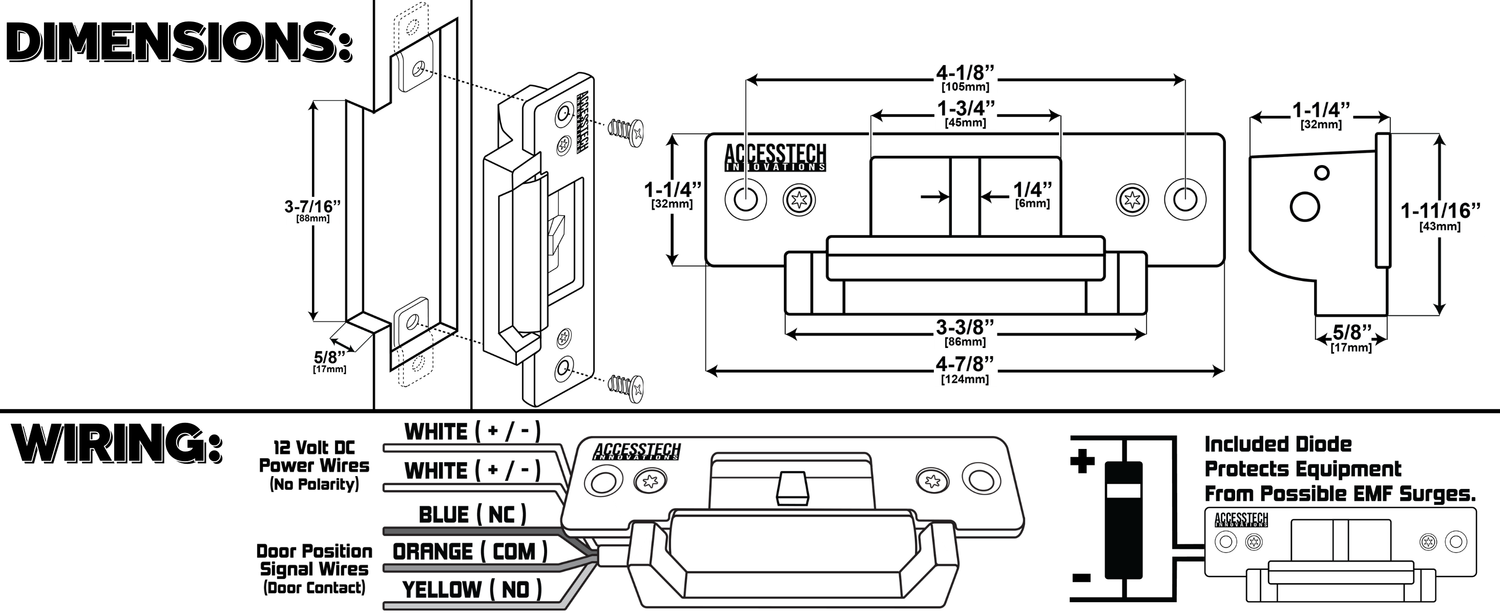

Dimensions:

Overall Dimensions (LxWxH):

4-7/8" x 1-11/16" x 1-1/4" (124x43x32mm)

Dimensions

ANSI Standard FacePlate:

4-7/8" x 1-1/4" (124mm x 32mm)

LatchBolt Size Up To 5/8"

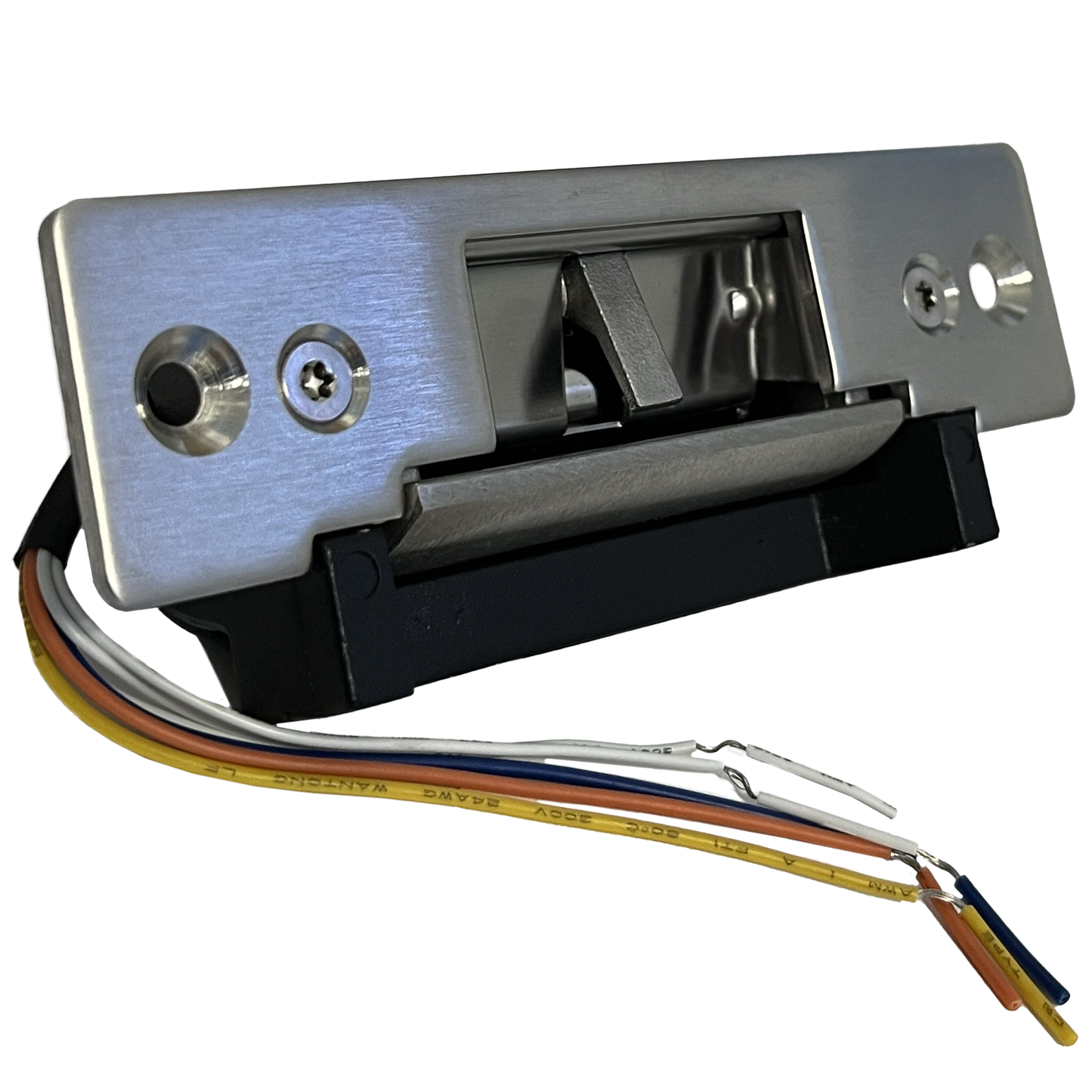

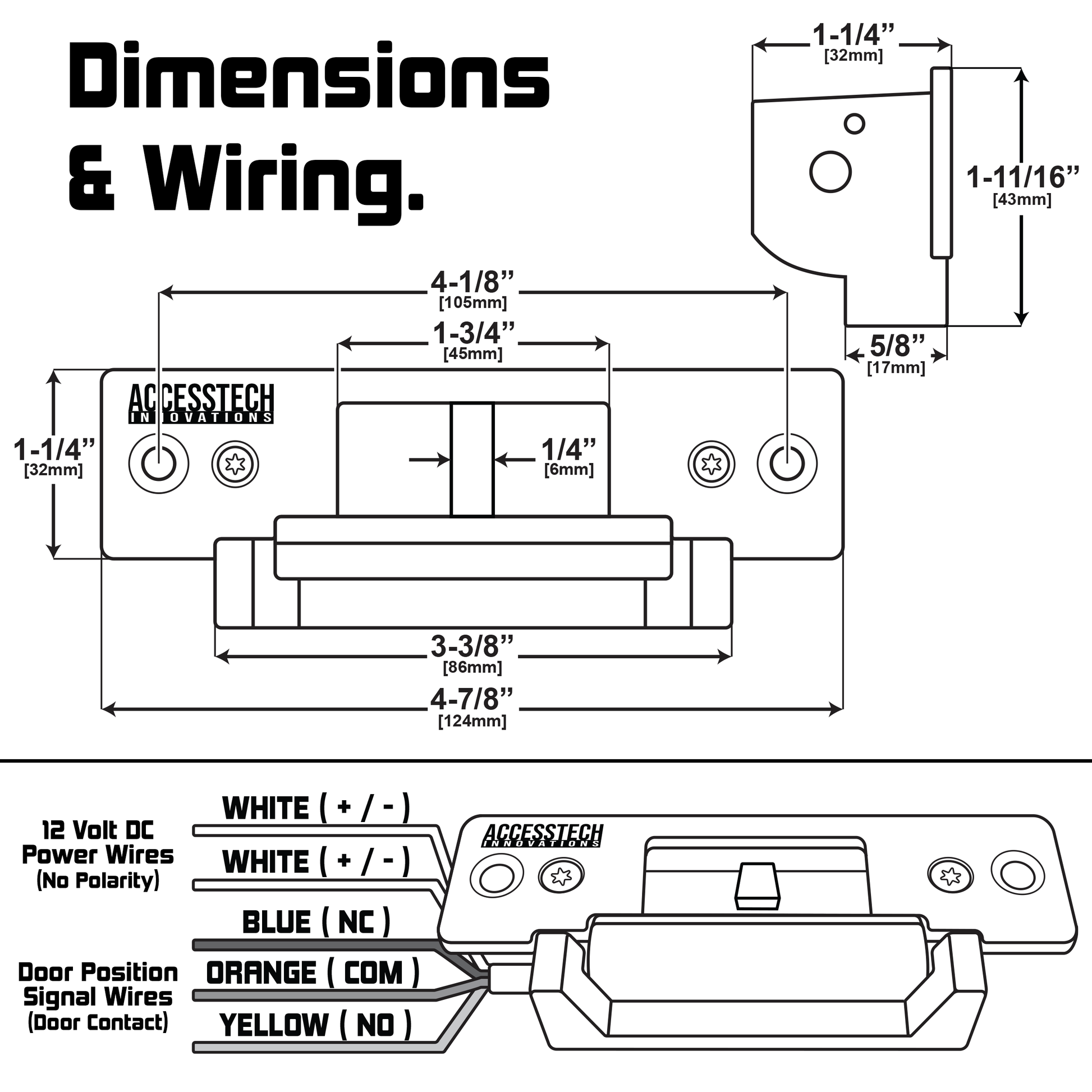

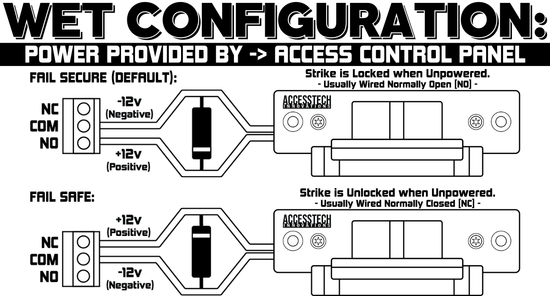

Wiring:



Wires:

White: No Polarity - Either one can be positive or negative

Blue: Normally Closed (NC) - Gives Output When Door Is OPEN

Orange: Common (COM) - Power Return Path

Yellow: Normally Open (NO) - Gives Output When Door Is CLOSED

Diode:

Protects equipment from electromagnetic surges.

Leg With White Stripe Attaches To The Positive Wire

Documentation:

Information Sheet Manual Flyer
DOWNLOAD DOWNLOAD DOWNLOAD

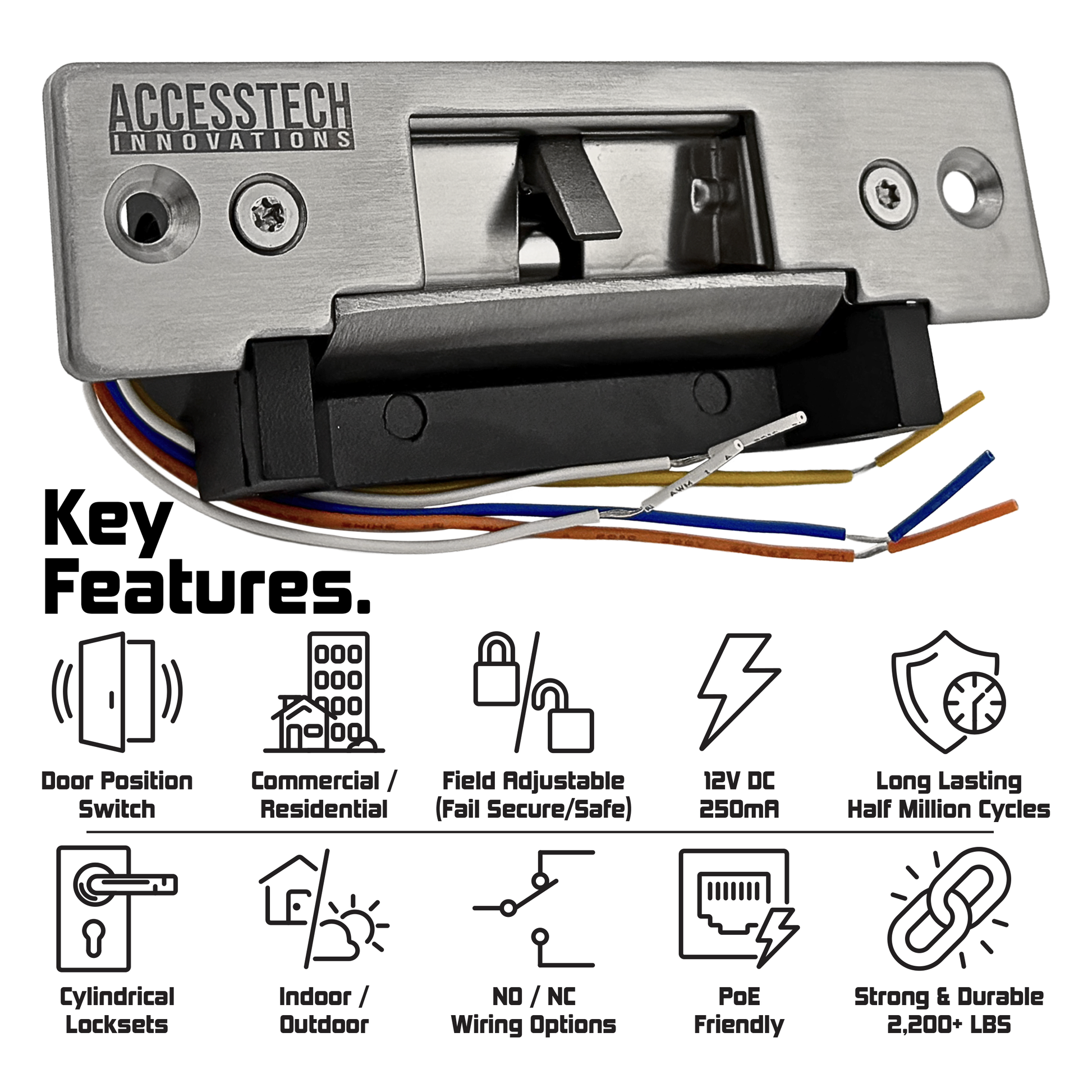

Key Features:

  • Door Position Switch (Signal Output)
  • Commercial / Residential Use
  • Field Adjustable (Fail Secure/Safe)
  • 250mA @ 12V DC
  • Long Lasting Half Million Cycles
  • Burglary Resistant
  • Cylindrical Locksets
  • Indoor / Outdoor
  • NO / NC Wiring Options
  • PoE Friendly
  • Strong & Durable 2,200+ LBS
  • 3 Year Limited Warranty
1 12

Shop The 300 Series Electric Strikes

Model 300: The Base Electric Strike

The foundation of the 300 Series, offering all the essential features needed for a secure and durable access control solution. Ideal for projects where reliable performance and straightforward installation are key priorities, the Model 300 delivers unmatched value.

Model 300-S: Enhanced with Signal Output

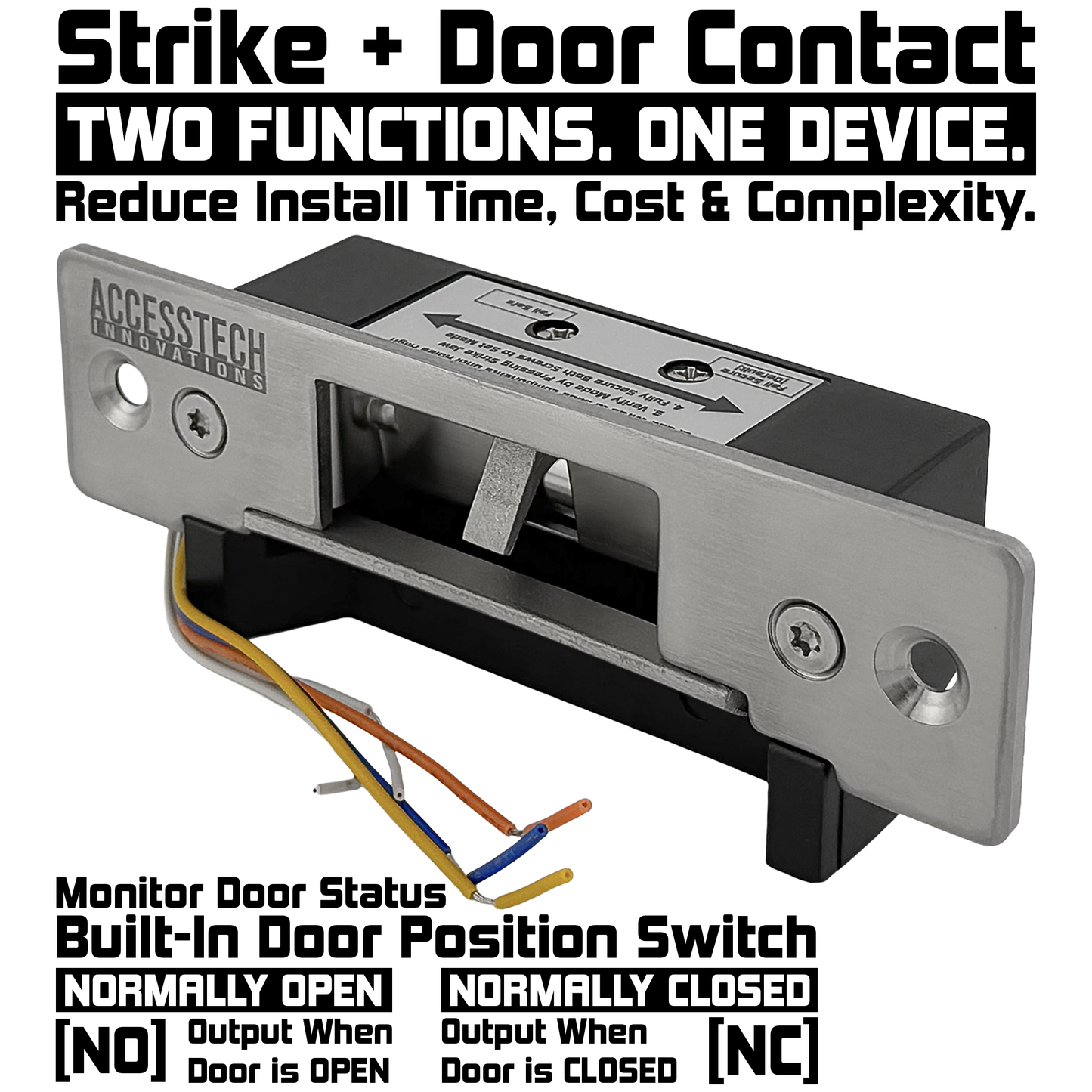

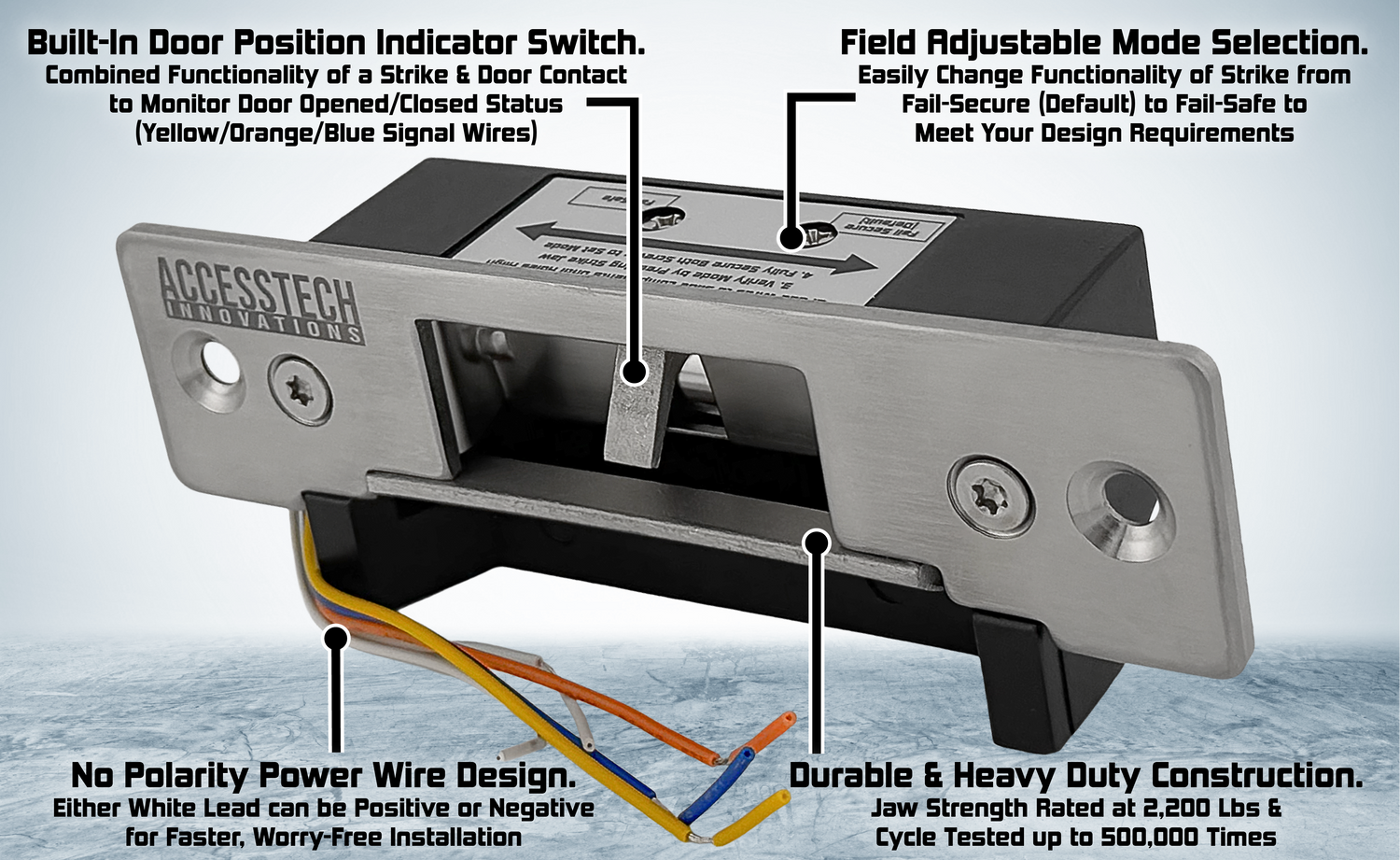

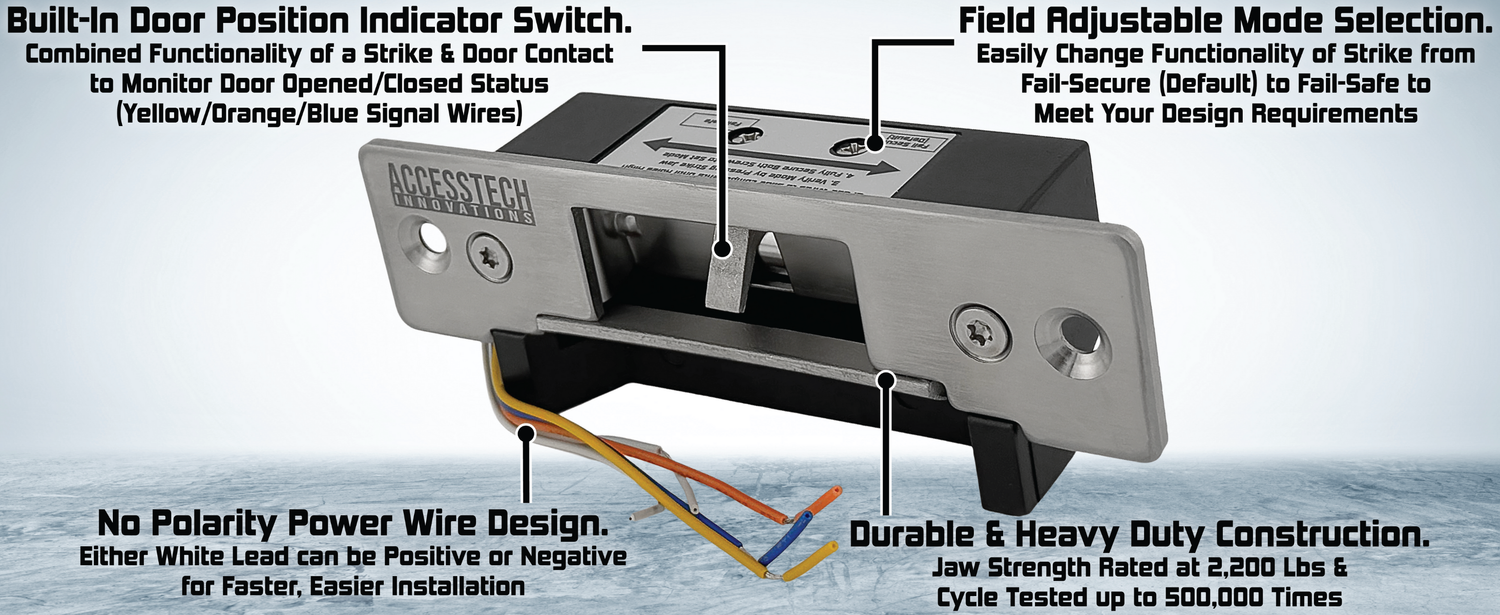

For those seeking additional functionality, the Model 300-S takes security to the next level. The "S" for Signal Output—incorporates a built-in door position switch. This switch can be wired to your Access Control system to provide real-time information on the door’s status (open or closed). By integrating this feature, the 300-S eliminates the need for a separate door contact, reducing both costs and installation time.

Whether you need a reliable base model or an advanced option with signal output capabilities, the 300 Series offers the perfect solution for any access control application.
